Archived product

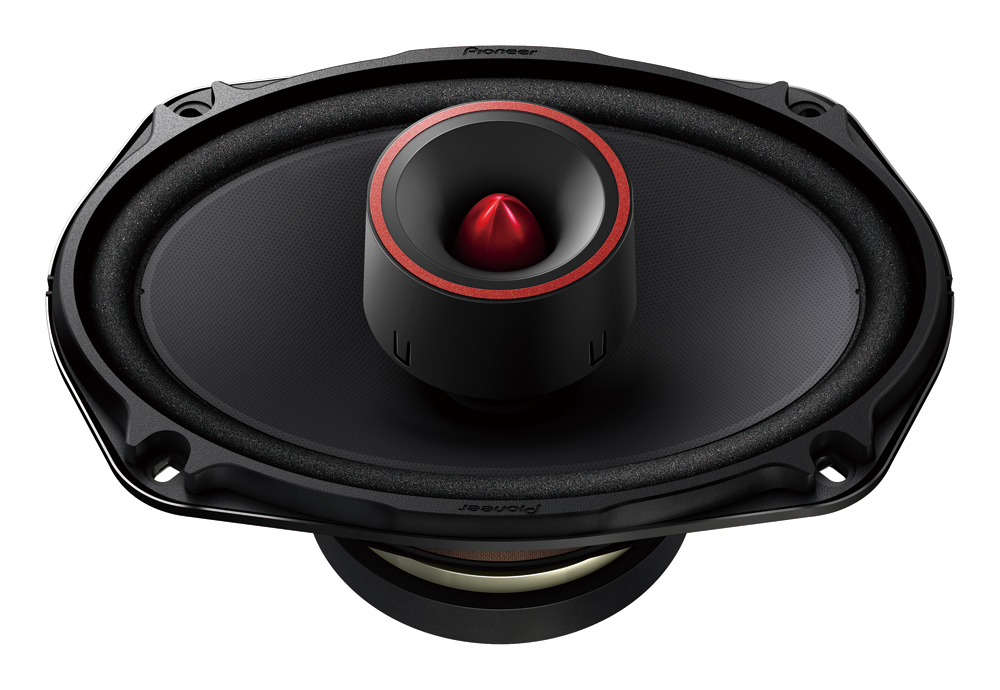

TS-6900PRO

6 x 9 inch 2-way Coaxial Speakers (600W). Note: This product is no longer available. For product information, please refer to the User Manual.

Key Features Speakers

Frequency response: 29 Hz - 40,000 Hz
Impedance: 4 Ω
Maximum input power: 600 W
Nominal input power: 100 W
Sensitivity: 92 dB
Series: PRO Series
Diameter Size: 6 x 9 inch
Dimensions: 163 mm x 237 mm
Magnets: Ferrite
Woofer material: Pulp

Other Specifications speakers

Cut-out Hole: 153 mm x 222 mm
Mounting Depth: 89 mm
Speaker Grill: Included
Weight: 2.33 kg

Software & Firmware downloads

Manuals

Compliance Document
Document type Download
EU Declaration Of Conformity Download
UK Declaration Of Conformity Download
Addendum
Languages Download
English, French, German, Italian, Portuguese, Russian, Spanish Download
