Archived product

TS-A25S4

25 cm / 10 inch A-Series Component Subwoofer, 1200 W MAX. 350 W NOM. (Russian model). Note: This product is no longer available. For product information, please refer to the User Manual.

Key Features Speakers

Frequency response: 22 Hz - 1400 Hz
Impedance: 4 Ω
Maximum input power: 1200 W
Nominal input power: 350 W
Sensitivity: 85 dB
Series: A-Series
Diameter Size: 25 cm
Dimensions: 267 mm x 144 mm

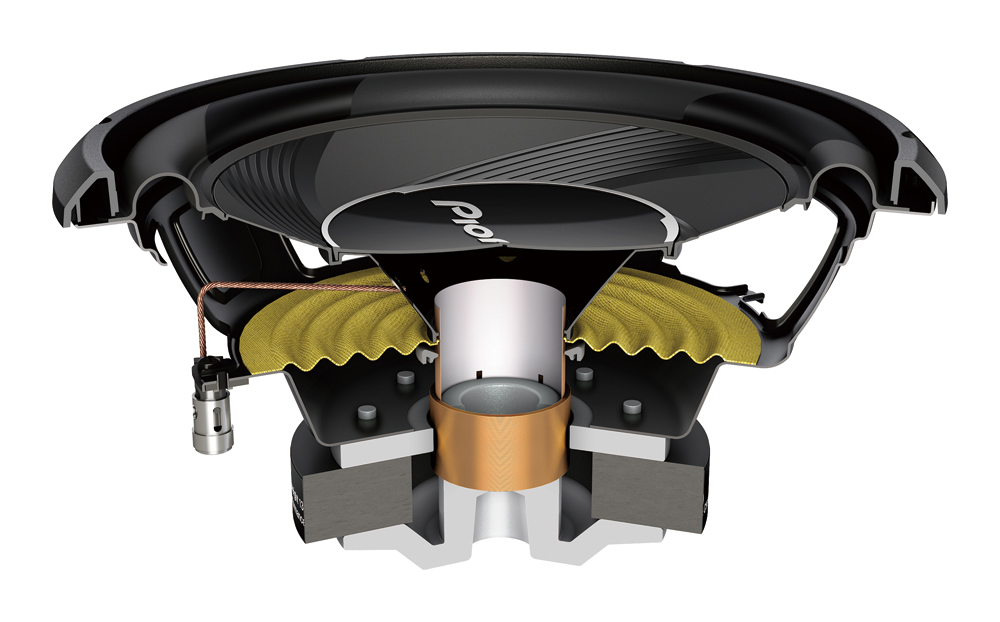

IMPP™ Composite Cone:
Magnets: Ferrite
Woofer material: Glass Fiber & Mica Reinforced Interlaced Injection Molded PolyPropylene (IMPP™) Cone

Other Specifications speakers

Cut-out Hole: 230 mm
Mounting Depth: 128 mm
Recommended Enclosure (ft³/litre): 0.8 / 22.6
Speaker Grill: Not Included
Weight: 3.20 kg
CarSoundFit App:
Component Speakers - Component speakers not only reproduce the audio signal more accurately, but also increase the listener's control over the audio signal.
IMPP™ Cone - Pioneer’s rigid and lightweight Injection Moulded Polypropylene Composite (IMPP™) Cone for improved clarity and reduced distortion.

Software & Firmware downloads

Manuals

Compliance Document
Document type Download
EU Declaration Of Conformity Download
UK Declaration Of Conformity Download
Addendum
Languages Download
Arabic, English, Italian Download
