Archived product

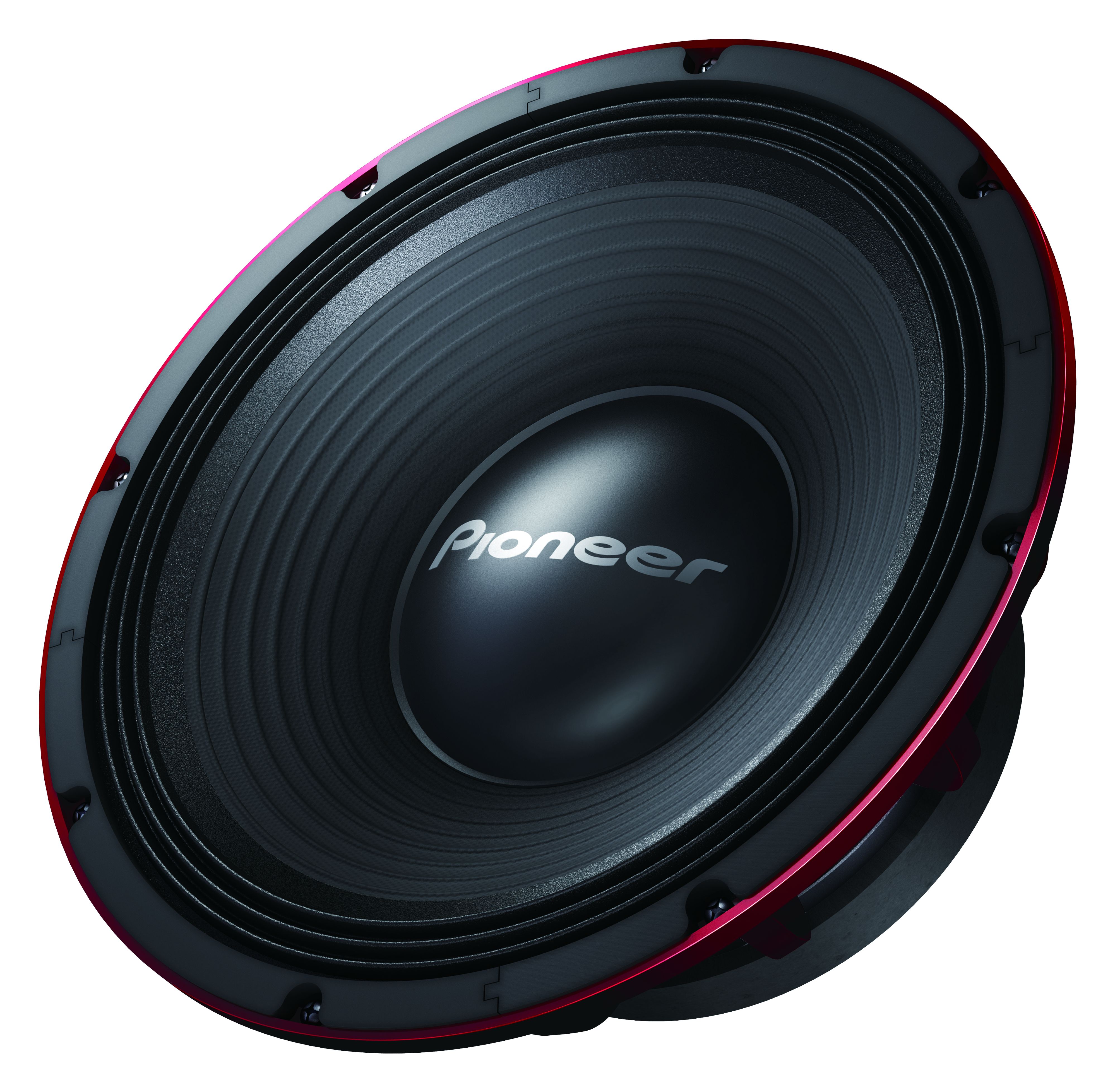

TS-W1200PRO
12 inch PRO Series Subwoofer with Dual 4Ω Voice Coil (Russian model). Note: This product is no longer available. For product information, please refer to the User Manual.
Key Features Speakers
| Frequency response: | 20 Hz - 500 Hz |
|---|---|
| Impedance: | 4 Ω Dual Voice Coil (DVC) |
| Maximum input power: | 1500 W |
| Nominal input power: | 450 W |
| Sensitivity: | 105 dB |
| Series: | PRO Series |
| Diameter Size: | 30 cm |
| Dimensions: | 313 mm x 142 mm |
| Magnets: | Ferrite |
| Woofer material: | Pulp |
Other Specifications speakers
| Cut-out Hole: | 283 mm |
|---|---|
| Mounting Depth: | 133 mm |
| Recommended Enclosure (ft³/litre): | 1.25 / 35.4 |
| Speaker Grill: | Not Included |
| Weight: | 7.30 kg |
