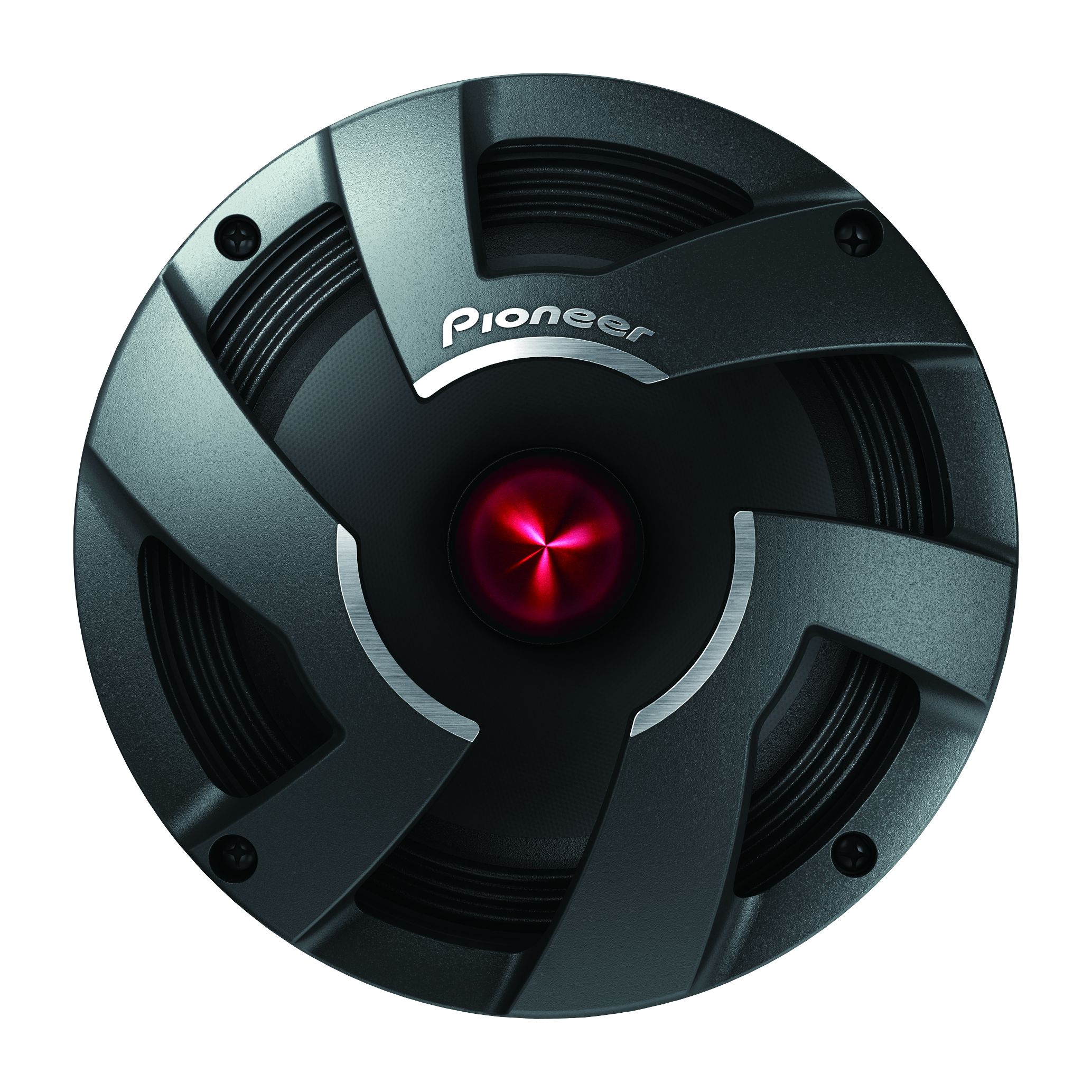

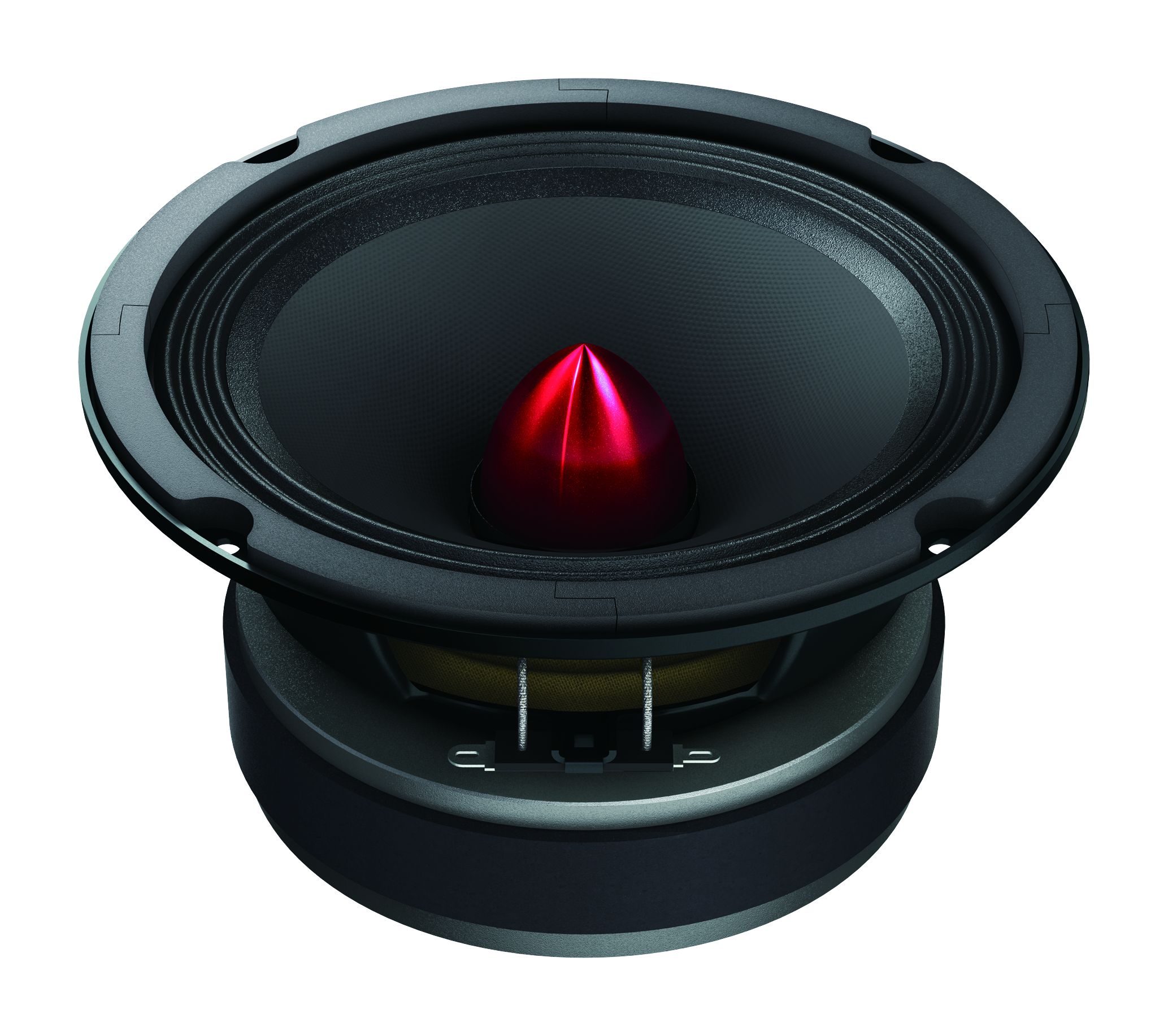

TS-M650PRO
6½ inch PRO Series mid-bass driver. Note: This product is no longer available. For product information, please refer to the User Manual.
  • This product is no longer available.

Key Features Speakers

Series: PRO Series
Diameter Size: 17 cm
Maximum input power: 500 W
Nominal input power: 110 W
Frequency response: 50 Hz - 18,000 Hz
Sensitivity: 94 dB
Impedance: 4 Ω
Dimensions: 174 mm x 105 mm
Magnets: Ferrite
Woofer material: Pulp

Other Specifications speakers

Cut-out Hole: 148 mm
Mounting Depth: 81 mm
Speaker Grill: Included
Weight: 2.71 kg

Software & Firmware downloads

Manuals

Installation Manual
Languages Download
English, French, German, Italian, Russian, Spanish Download
Compliance Document
Document type Download
EU Declaration Of Conformity Download
UK Declaration Of Conformity Download
